The Making of a Faekel
Generating Haeckel: A Generative Adversarial Network Experiment in Natural Forms
This post was originally written in March 2021, how times have changed with generative models!
There are over 100 plates involved in the making of the 2 volumes of Haeckel’s lithographs for ‘Kunstformen der Natur’ but within each plate there are between 3 and 15 organic structures. Many of them based on the microscopic mineral skeletons of protozoa. I thought they’d make a great base for a GAN, but only if each organism could be isolated.
Creating the Dataset
There’s no real way around this, a dataset like this has to be hand curated. Each organism was cut from its surroundings, cleaned up and placed onto a black background. Because some of the plates are colour against white I either desaturated them and then hand cut each one out or else I desaturated and inverted them. I eventually ended up with a set of 1000 images at 1024 x 1024.
The GAN model
I used Stylegan 2 ADA running on 1 x 16GB GPU over at Paperspace. Initially I was over optimistic and tried to train on the 1000 image dataset. I’d had some good results from a previous 2000-ish dataset and just thought, why the hell not? I was wrong and after a 70ish ticks it went into mode collapse.
(Mode collapse is when a generative model produces limited or nearly identical outputs because the generator has learned to exploit a few patterns that consistently fool the discriminator instead of capturing the full diversity of the data)
Pretraining
What you can do in this situation is find the same model trained on a larger but similar enough set of data, you can then use the weights from this model to prime your model, so I went hunting and found a set of pre-trained Stylegan 2 models. I went down a few dead alleys in there until I eventually stumbled upon my personal nightmare data. Trypohobia. I don’t even know why this model exists or what purpose it serves but Trypophobia refers to a fear of too many holes close together. A bit of weird info on Trypophobia here.
It was the closest set of data I could find, so I started the model running on this with limited optimism.
Results on Haeckel Data Pretrained with Trypophobia
So much better and fast (comparatively), obviously there’s a preponderance towards- holes close together which is present within a fair amount of the Haeckel images as well.
Latent Space Interpolation
What this video shows is a model smoothly blending between two potential generations, by moving through the “space” of its internal understanding.
Pretrained Mk 2
I decided to augment the initial pretrain data, what i’d been looking for initially was electron microscopy databases and eventually came across something called the NFFS-Europe — 100% SEM Dataset. So I used my Trypophobia pretrained set, trained for a short period on Electron microscopy images and then threw in the Haeckel Dataset. What this did was give the results more of a matt grey effect.
Some of the projects that came out of these simulations below:
Initially I decided it would be a neat trick to reconvert these simulated organisms back into their original format of a Stone Lithographic plate. Making Stone Lithos is an intense amount of labour so I suppose you could ask, are neat tricks worth the labour? Maybe, maybe not, but also why not?
In the end I made 3 Stone Lithographic plates with the help of printmaker Jodi Le Bigre who ran a small Stone Litho press at the time. She prepped the plates for me, I drew them, and then she printed them.
Installation

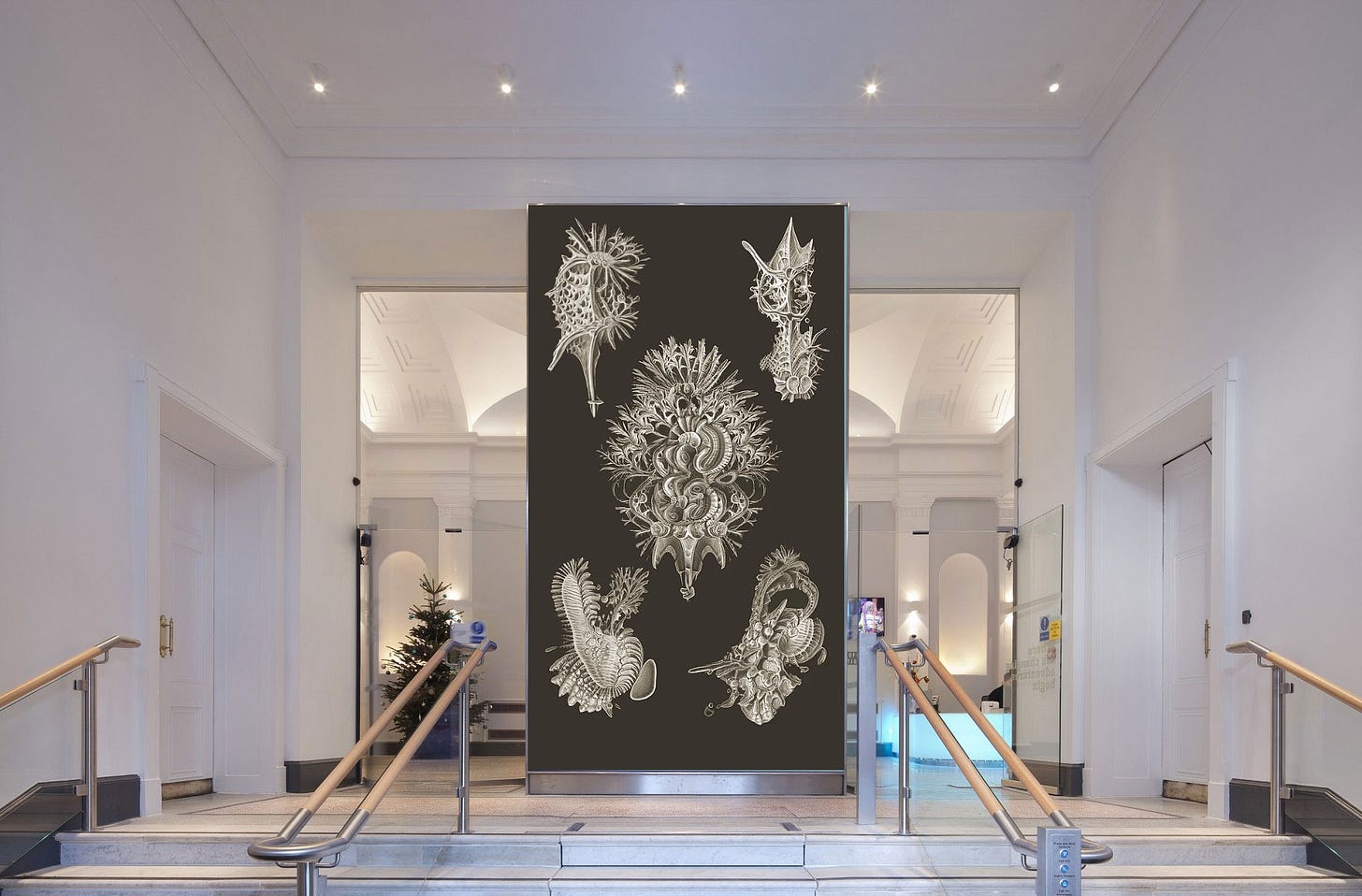

Media Scotland asked me to produce an installation for the Aberdeen Music Hall entrance, I laid out a series of Latent Space Walks across the screen simulating the Lithographic plate
